For over a decade, Recoup has pioneered the use of Waste Water Heat Recovery for showers (WWHRS) across the UK, establishing ourselves as the definitive specialists in this rapidly expanding field. Recoup's technology represents one of the most effective and fastest-growing solutions for genuine energy efficiency. Whether you are navigating compliance for new builds through essential tools like SAP, SBEM, or BREEAM, or are looking to reduce operational costs in existing properties, our systems deliver proven results. Recoup provides essential hot water cost savings for everything from high-traffic commercial buildings and hotels to hard-to-treat residential homes, ensuring both compliance and significant, long-term efficiency gains.
Saves up to 60% of the energy per shower!
Waste Water Heat Recovery for Showers (WWHRS) is a technology increasingly implemented in new buildings and social housing. It is a straightforward system that captures heat energy from waste shower water using a heat exchanger. This recovered energy is then utilized within the shower system, resulting in cost savings, energy conservation, and reduced carbon emissions.
How Waste Water Heat Recovery Works for Showers
Approximately 85-90% of the heat energy from showers is lost down the drain. Waste Water Heat Recovery for Showers (WWHRS) captures this heat from the shower's waste water and transfers it to the cold water supply of the shower and/or the property's water heater. This process reduces the need for hot water during showers, leading to energy savings and lower household costs.

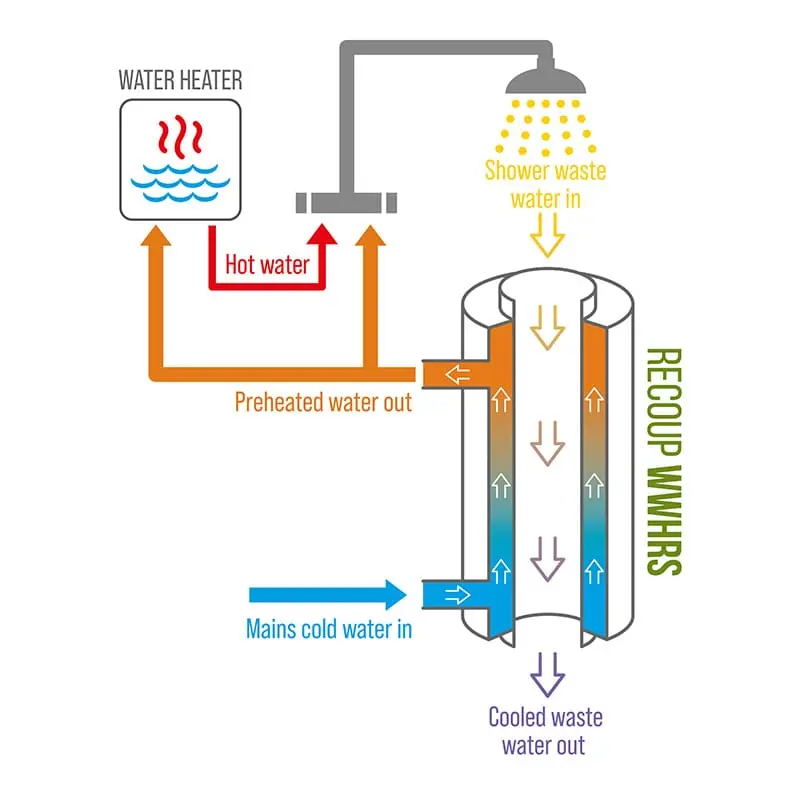

Vertical WWHRS
Wastewater from the shower passes through a copper heat exchanger, while cold mains water circulates around it.

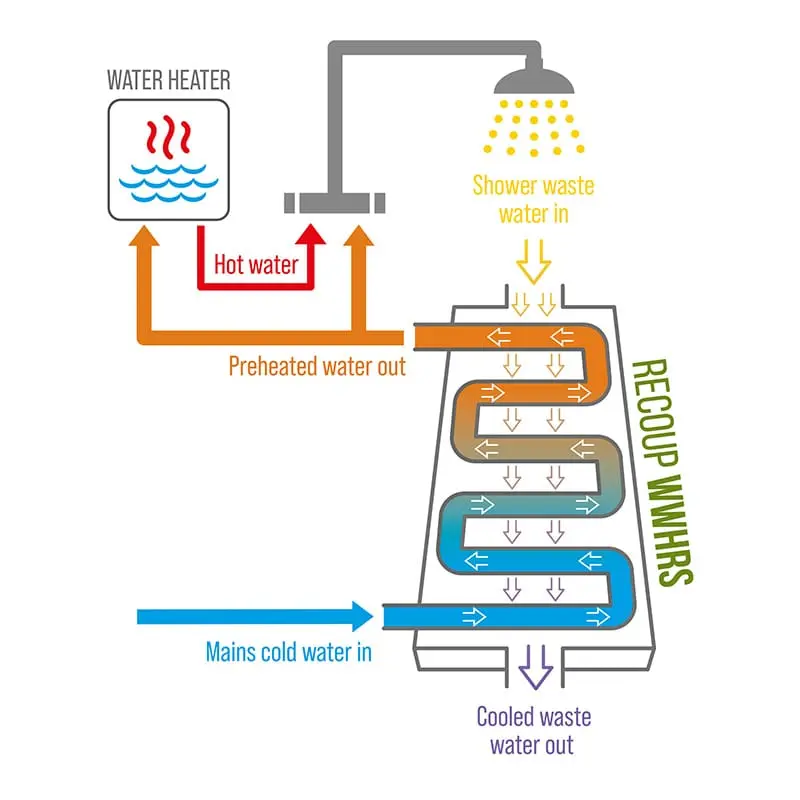

Horizontal WWHRS
Waste water from showers flows over a copper heat exchanger, while cold mains water circulates through the exchanger.
The installation method for System A is illustrated above. It works by sending preheated water to both the water heater and the cold side of the shower, ensuring maximum efficiency and significant savings. In contrast, System B directs the preheated water solely to the shower. This approach is ideal for easy retrofits, upgrades, and situations where a second system is necessary within a property.
Recoup have a WWHRS solution for any shower space

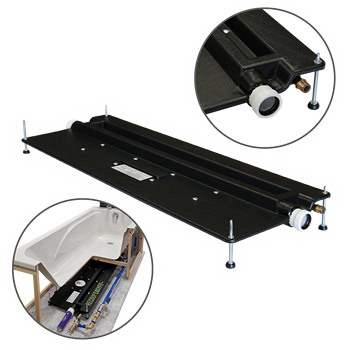

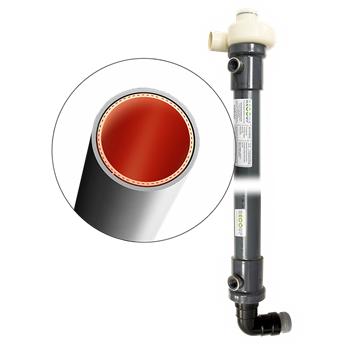

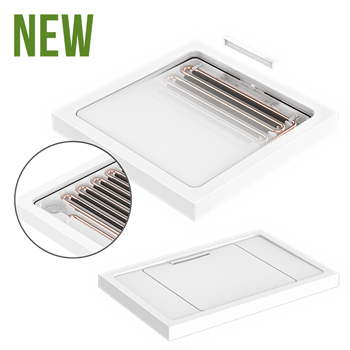

- Vertical and horizontal products (pipes, under bath, shower tray & drains)
- TMV mixer or Mira Heatloop™ electric shower compatible
- Compatible with all water heaters: gas combi, cylinder (boiler or heat pump), or direct electric
- No end user interaction required
- No change of use, or change to showering experience
- No planned maintenance
- SAP listed and WRAS approved

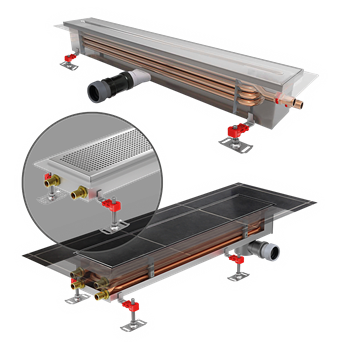

Recoup Drain+ Range
WWHRS offers integrated wet-room drain channels designed for high-end residential properties, as well as DDA-compliant, commercial, and communal showers.

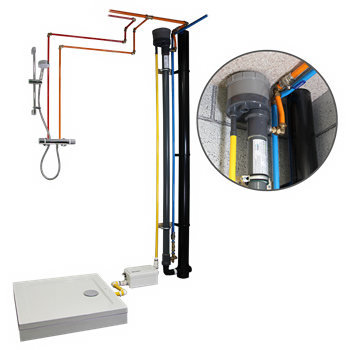

Recoup Pipe+ HEX Active
Actively pumped wastewater heat recovery systems (WWHRS) provide the highest efficiency and are suitable for same-floor shower options in apartments, refurbishments, adaptations, and retrofits.

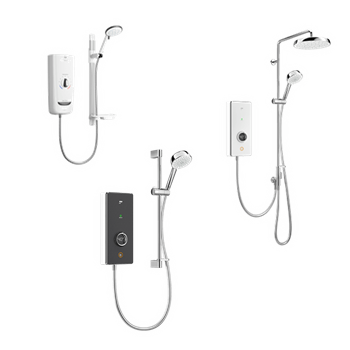

Mira Heatloop
The first electric shower that is fully compatible and safe for use with WWHRS. It stabilizes temperatures year-round, with savings of up to 40%.
